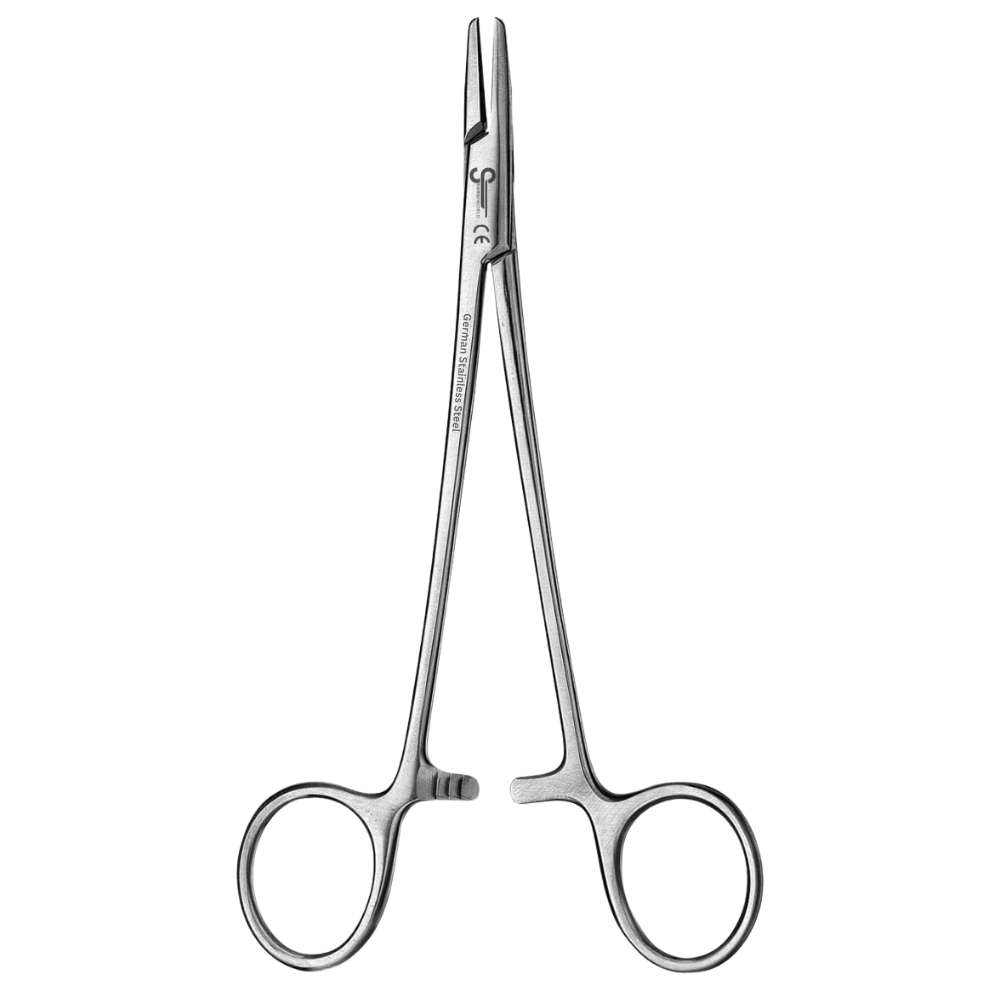

The Mayo Hegar Grooved Jaw Needle Holder 11.5cm combines two distinct advantages: the proven Mayo Hegar body design – one of the most widely used ring-handled suturing frames in oral surgery – and a longitudinal needle groove cut into the inner jaw face that locks the suture needle into a consistent orientation on every load.
At 11.5 cm (4.5 inches), this is a notably compact instrument. Most standard dental needle holders start at 13 cm, making this version specifically useful in clinical situations where a shorter instrument length is a genuine advantage rather than a compromise. These include:
When the 11.5cm length matters most:
• Pediatric dentistry – smaller oral cavities require shorter instruments for comfortable access without handle interference at the lip commissure
• Limited mouth opening – patients with restricted jaw opening (post-surgical, TMD, or trismus) benefit from a shorter instrument that requires less overall working space
• Very anterior procedures – central incisor and lateral incisor suturing where a shorter instrument keeps the handle out of the opposing arch’s way
• Fine control preference – some clinicians prefer a shorter, lighter instrument for anterior work where wrist rotation rather than arm movement drives the needle

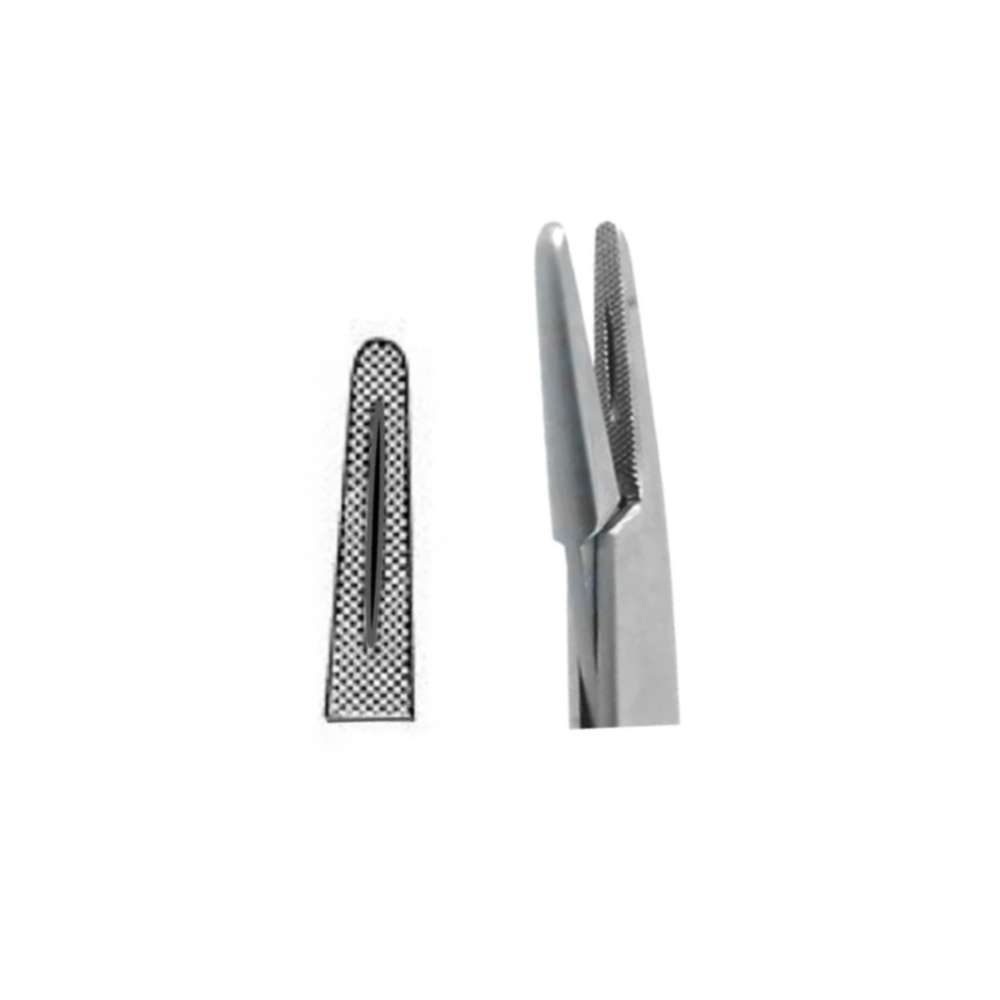

The needle groove running down the center of both jaw faces creates a channel – a needle track – that the suture needle body drops into when the jaws close. The serrations on either side of the groove grip the needle laterally while the groove prevents axial rotation. This means the needle stays at the same angle on every pass, reducing the time spent visually checking and manually adjusting needle position between sutures – a small efficiency that adds up significantly across a multi-suture case.
The box-lock joint maintains accurate jaw alignment under repeated opening and closing over the long term – critical for consistent needle tracking through tissue. The ratchet locking mechanism offers multiple jaw-closing positions appropriate to the needle and suture size being used. The ring handles follow the standard surgical format – thumb and ring finger in the rings, index finger extended along the shank for directional control during needle driving.
Clinical Indications: Anterior incisor and canine suturing in adults and children, pediatric post-extraction socket closure, frenectomy wound closure, labial tissue biopsy closure, limited-opening patient suturing, and any anterior intraoral procedure where a compact suturing instrument improves access and handling.
Suture Compatibility: 4-0 and 5-0 sutures on small to standard curved needles – the smaller needle sizes most commonly used in fine anterior and pediatric intraoral suturing.
| Overall Length | 11.5 cm / 4.5 inches |
| Jaw Type | Cross-serrated with longitudinal center needle groove |
| Handle Style | Ring handles – thumb & ring finger (Mayo Hegar style) |
| Lock Mechanism | Ratchet lock – multi-position |
| Joint Type | Box-lock |
| Material | High-grade stainless steel |
| Suture Compatibility | 4-0, 5-0 curved needle sutures |
| Sterilization | Autoclave-compatible – 134°C / 273°F |
| Best For | Anterior, pediatric & limited-opening suturing |
Why Choose 11.5cm Over 13cm or 14cm?
- Better handle clearance in small oral cavities (pediatric patients)
- Reduced lip and cheek interference during anterior suturing
- Lighter instrument weight – less hand fatigue in fine, close-range work
- Improved wrist-rotation control for very anterior needle driving
- The only compact grooved jaw Mayo Hegar size – no equivalent in plain serrated instruments at this length
